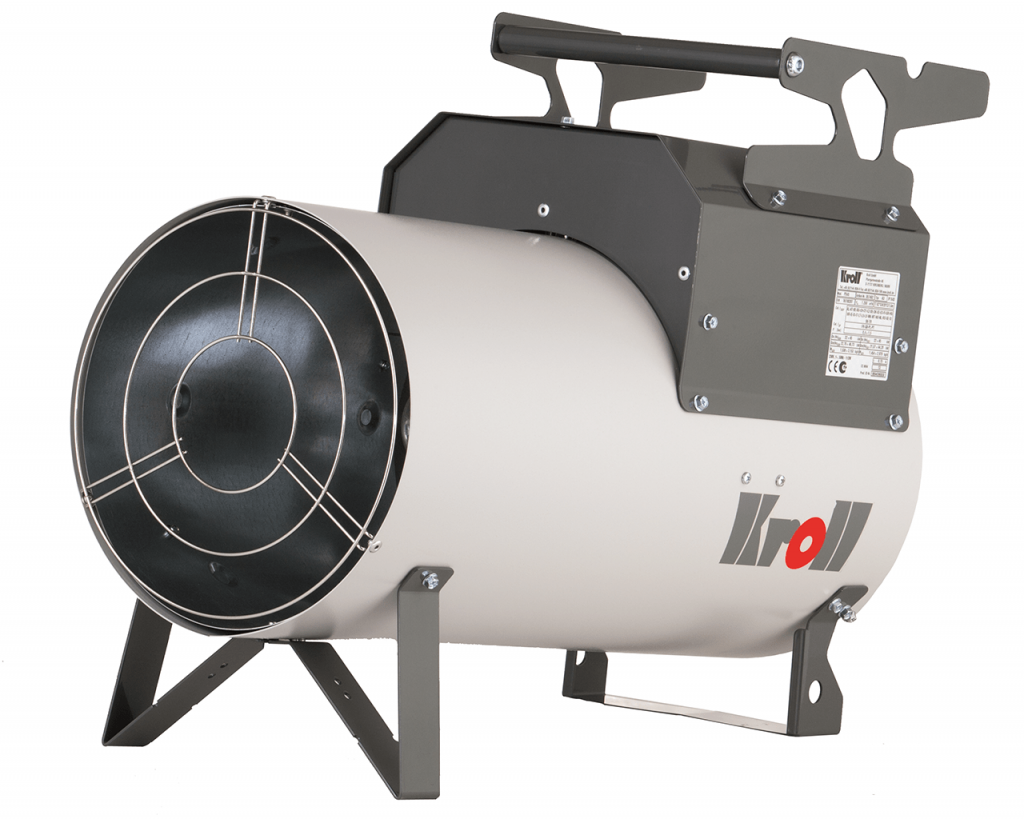

Mobile Gas Heaters P / PX

Environmentally friendly and efficient instant heat

Kroll gas heaters are both environmentally friendly and economical. Gas is an environmentally friendly fuel by nature; among fossil fuels, gas is even one of the most environmentally friendly variants. Our gas heaters burn almost residue-free and have a high degree of efficiency. For even better energy savings, a room thermostat can be included. After filling and connection to 230/50-60 V/Hz mains, the units are immediately ready for operation and do not require a long lead time.

The power range extends from 15 to 100 kW. Whether for construction, agriculture, nurseries or well-ventilated production and factory halls - we have the right unit for every approved location. All units have a built-in pressure regulator, the connection fitting is included in the scope of delivery. They all comply with the regulations according to DIN 30697 and thus with the European standard CE. Additional safety is provided by the permanent monitoring of the gas flame by thermocouples and ionisation electrodes. The gas supply stops immediately if the gas flame goes out. The built-in thermostat prevents the appliance from overheating. Robust technology and the highest quality of workmanship ensure trouble-free operation.

Powder-coated steel housing
P-series: Piezo ignition
PX series: automatic ignition
PX series: Room thermostat connection
Low-noise and powerful fan
Compact design
Pressure regulator with hose and hose rupture protection

Our gas heaters are compactly built and therefore easy to transport. For more flexibility, an optional conversion kit for mobile and stacking capability can be attached.

We guarantee the quality of our products - As the first manufacturer in the heating and ventilation sector, we offer our customers a full 3-year manufacturer's warranty.

Contact

Telephone

Technical Service
Telephone +49 (0)7191 / 9070-222
Telefax +49 (0)7191 / 9070-201

Please have the item number and serial number of the unit ready when making enquiries.

Sales
Telephone +49 (0)7191 / 9070-200
Telefax +49 (0)7191 / 9070-201

E-Mail

Technical Questions
service@kroll.de

Questions regarding Sales
vertrieb@kroll.de

General requests
info@kroll.de

P- & PX-devices overview


Nominal thermal load	15,08-31,40 kW
Air volume flow	1100 m³/h
Gas consumption kg/h	1,03-2,13 kg/h
Electrical power consumption	0,09 kW
Electrical input	230/50-60 V/HZ/A
Width	277 mm
Length	511 mm
Height	505 mm
Weight	10 kg
Sound pressure level	72 dB(A)


Nominal thermal load	22,76-46,73 kW
Air volume flow	1250 m³/h
Gas consumption kg/h	1,54-3,15 kg/h
Electrical power consumption	0,112 kW
Electrical input	230/50-60 V/HZ/A
Width	277 mm
Length	511 mm
Height	575 mm
Weight	12 kg
Sound pressure level	73 dB(A)


Nominal thermal load	32,22-66,25 kW
Air volume flow	1950 m³/h
Gas consumption kg/h	2,19-4,47 kg/h
Electrical power consumption	0,14 kW
Electrical input	230/50-60 V/HZ/A
Width	317 mm
Length	538 mm
Height	580 mm
Weight	14 kg
Sound pressure level	73 dB(A)


Nominal thermal load	40,95-84,91 kW
Air volume flow	2550 m³/h
Gas consumption kg/h	2,78-5,76 kg/h
Electrical power consumption	0,24 kW
Electrical input	230/50-60 V/HZ/A
Width	317 mm
Length	538 mm
Height	700 mm
Weight	16 kg
Sound pressure level	76 dB(A)


Nominal thermal load	15,08-31,40 kW
Air volume flow	1100 m³/h
Gas consumption kg/h	1,03-2,13 kg/h
Electrical power consumption	0,09 kW
Electrical input	230/50-60 V/HZ/A
Width	277 mm
Length	511 mm
Height	505 mm
Weight	10 kg
Sound pressure level	72 dB(A)


Nominal thermal load	22,76-46,73 kW
Air volume flow	1250 m³/h
Gas consumption kg/h	1,54-3,15 kg/h
Electrical power consumption	0,112 kW
Electrical input	230/50-60 V/HZ/A
Width	277 mm
Length	511 mm
Height	575 mm
Weight	12 kg
Sound pressure level	73 dB(A)


Nominal thermal load	32,22-66,25 kW
Air volume flow	1950 m³/h
Gas consumption kg/h	2,19-4,47 kg/h
Electrical power consumption	0,14 kW
Electrical input	230/50-60 V/HZ/A
Width	317 mm
Length	538 mm
Height	580 mm
Weight	14 kg
Sound pressure level	73 dB(A)


Nominal thermal load	40,95-84,91 kW
Air volume flow	2550 m³/h
Gas consumption kg/h	2,78-5,76 kg/h
Electrical power consumption	0,24 kW
Electrical input	230/50-60 V/HZ/A
Width	317 mm
Length	538 mm
Height	700 mm
Weight	16 kg
Sound pressure level	76 dB(A)


Nominal thermal load	48,81-108,71 kW
Air volume flow	3700 m³/h
Gas consumption kg/h	3,3-7,37 kg/h
Electrical power consumption	0,4 kW
Electrical input	230/50-60 V/HZ/A
Width	438 mm
Length	606 mm
Height	835 mm
Weight	26 kg
Sound pressure level	76 dB(A)
