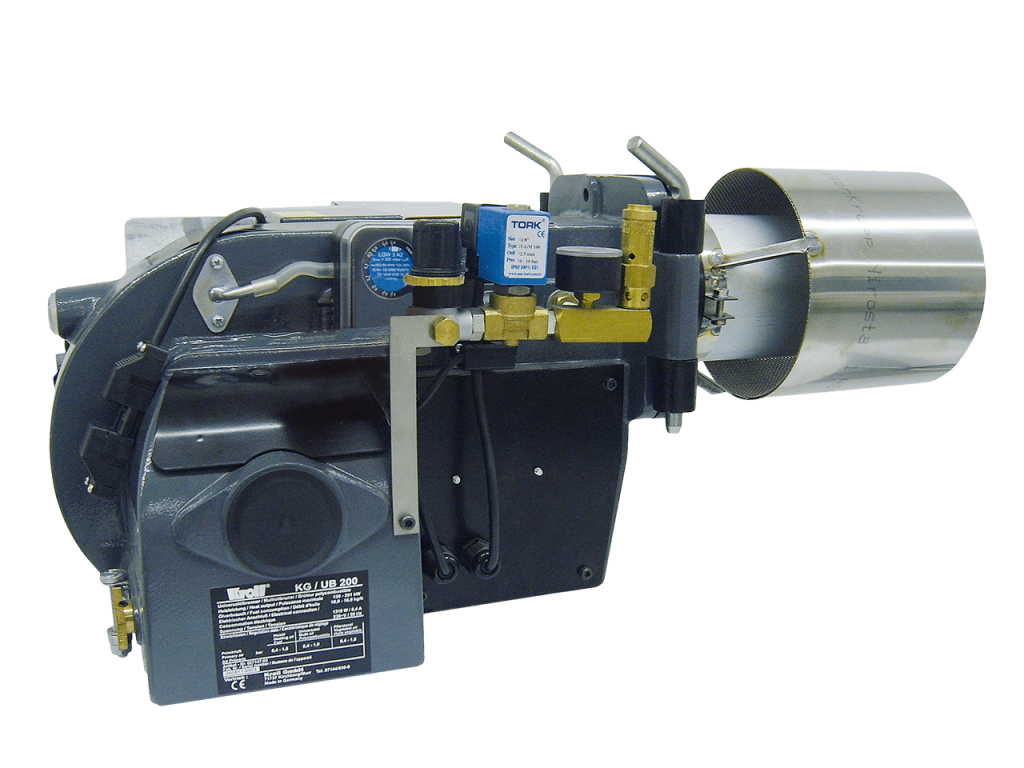

Universal Oil Burner KG/UB

All-rounder with proven technology

With the Kroll universal oil burner type KG/UB you get a true all-rounder among oil burners; without special tools you can effortlessly choose between different oils as fuel while observing national standards. Thanks to the smart design, you only need a few hand movements to set the right preheating temperature and the ratio between combustion air and fuel. Thus, in combination with a warm air heater, you can heat your large commercial or industrial spaces such as workshops, production halls or storage areas in the most economical and comfortable way. If you choose vegetable oils, you get another advantage; the energetic density is close to the values of heating oil, while vegetable oils are CO2-neutral and do not contain any sulphur or heavy metals.

The fuel is atomised by means of compressed air through relatively large nozzle diameters. This is particularly helpful for avoiding clogging with dirty or viscous oils. A separate delivery system draws your desired fuel from the storage tank, filters it and preheats it. The tank located on the burner ensures that a constant volume flow of fuel to the ignition electrode prevails; this ensures constant and perfect combustion.

Whether you have a cast iron or steel burner chamber in your boiler, the additional use of our patented ZVP pipe and a ceramic fibre plate ensures a so-called "hot combustion chamber". The patented ZVP pipe contributes to lowering the flue gas temperature, increasing the CO2 values, reducing the soot number and prolonging the life of your burner.

In many commercial operations, a compressor system is already in place; this can be used for the compressed air supply. If this is not the case, you can use the specially adapted Kroll compressors to generate the compressed air required to operate the burner. Boilers of newer or older construction years can be effortlessly equipped or converted with a universal oil burner. You can choose your preferred energy source at any time: Whether under economic or ecological aspects - with the KG/UB you always make the right decision.

We guarantee the quality of our products - As the first manufacturer in the heating and ventilation sector, we offer our customers a full 3-year manufacturer's warranty.

Contact

Telephone

Technical Service
Telephone +49 (0)7191 / 9070-222
Telefax +49 (0)7191 / 9070-201

Please have the item number and serial number of the unit ready when making enquiries.

Sales
Telephone +49 (0)7191 / 9070-200
Telefax +49 (0)7191 / 9070-201

E-Mail

Technical Questions
service@kroll.de

Questions regarding Sales
vertrieb@kroll.de

General requests
info@kroll.de

KG/UB-devices overview

Nominal heating capacity
26-38 kW
Oil consumption
2,5-3,9 kg/h
Electrical power consumption
1,21 kW
Electrical input
230/50 V/HZ/A
Weight
15 kg
Nominal heating capacity
37-54 kW
Oil consumption
3,6-5,2 kg/h
Electrical power consumption
1,21 kW
Electrical input
230/50 V/HZ/A
Weight
15 kg
Nominal heating capacity
56-81 kW
Oil consumption
5,4-7,8 kg/h
Electrical power consumption
1,21 kW
Electrical input
230/50 V/HZ/A
Weight
16 kg
Nominal heating capacity
81-100 kW
Oil consumption
7,8-9,6 kg/h
Electrical power consumption
1,21 kW
Electrical input
230/50 V/HZ/A
Weight
16 kg
Nominal heating capacity
93-147 kW
Oil consumption
8,9-14,1 kg/h
Electrical power consumption
1,35 kW
Electrical input
230/50 V/HZ/A
Weight
26 kg
Nominal heating capacity
131-190 kW
Oil consumption
12,7-18 kg/h
Electrical power consumption
1,35 kW
Electrical input
230/50 V/HZ/A
Weight
26 kg
